Specification
| Part No. | Male/Female | Material | Treatment | Wire Range (AWG) | Dimension (mm) | Thickness (mm) | Q’TY | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | W | L | E | |||||||

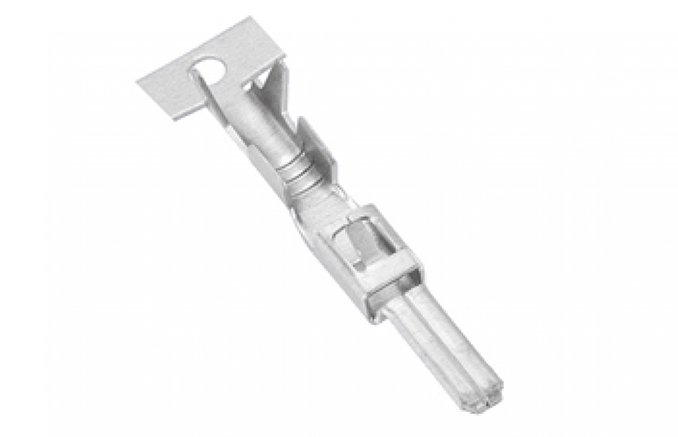

| 5031A-0 | Male | Brass | -0.-2 | 16-20 | / | 0.8 | 2.7 | 25.4 | 8.1 | 0.4 | 3500 |
| Part No. | Male/Female | Material | Treatment | Wire Range (AWG) | Dimension (mm) | Thickness (mm) | Q’TY | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | W | L | E | |||||||
| 5031A-0 | Male | Brass | -0.-2 | 16-20 | / | 0.8 | 2.7 | 25.4 | 8.1 | 0.4 | 3500 |
