Specification

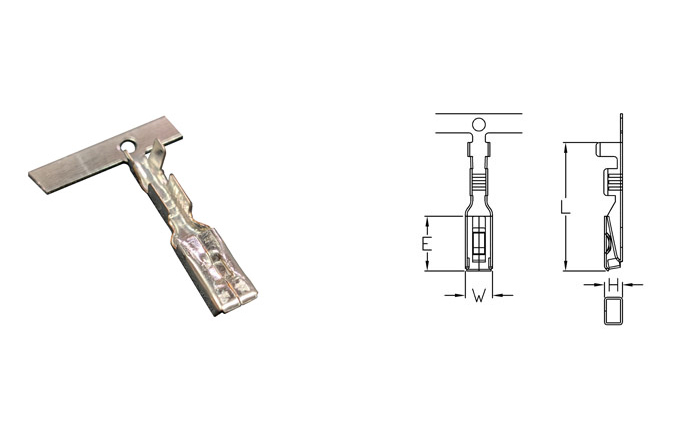

| Part No. | Male/Female | Material | Treatment | Wire Range (AWG) | Dimension (mm) | Thickness (mm) | Q’TY | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | W | L | E | |||||||
| 981078 | Female | Phosphor Bronze | -0 | 18-20 | / | 2.8 | 4.3 | 20.1 | 8.7 | 0.3 | 3500 |
| Part No. | Male/Female | Material | Treatment | Wire Range (AWG) | Dimension (mm) | Thickness (mm) | Q’TY | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | W | L | E | |||||||
| 981078 | Female | Phosphor Bronze | -0 | 18-20 | / | 2.8 | 4.3 | 20.1 | 8.7 | 0.3 | 3500 |
